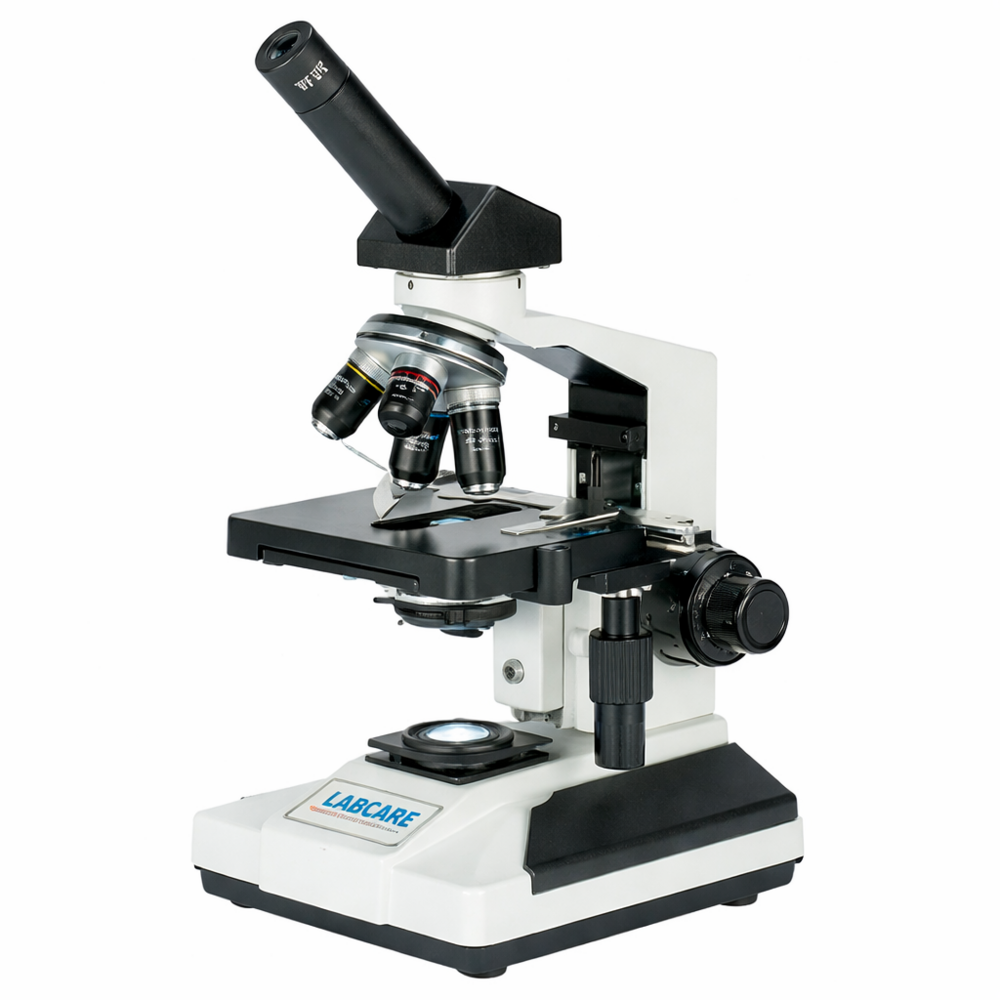

Mild Steel PATHOLOGICAL MONOCULAR MICROSCOPE BM-8mo

Send Inquiry

Request To Call Back

Mild Steel PATHOLOGICAL MONOCULAR MICROSCOPE BM-8mo

Name: Mild Steel PATHOLOGICAL MONOCULAR MICROSCOPE BM-8mo
Brand: LABCARE INSTRUMENTS & INTERNATIONAL SERVICES
Price: 12500 INR
Availability: InStock

Price 12500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mild Steel PATHOLOGICAL MONOCULAR MICROSCOPE BM-8mo Specification

Focus System
Coaxial coarse and fine focus knobs

Spare Parts
Supplied with replacement bulb, fuse, and dust cover

View Head
Monocular, inclined for ergonomic use

Features
Robust mild steel construction, anti-fungal optical components, easy maintenance, suitable for routine pathology and educational use

Theory
Pathological Monocular Microscope BM-8mo designed for clinical and laboratory use. Precision mild steel body ensures durability and stability.

Drawtube
Monocular

Sensor
Not applicable (optical system only)

Resolution
Dependent on optical system, provides high-clarity image based on objectives and eyepiece selection

Interface
Manual operation, no digital interface

Frame Rate
Not applicable (no camera attachment)

Focal Distance
160 mm (standard optical length)

Magnification
Typically 40x to 1000x, based on eyepiece and objective combination

Dimensions
Approx. 370 mm (H) x 150 mm (W) x 210 mm (D)

Focus Range
Coarse and fine focusing, precise adjustment for clear visualization

Eyepieces
10x or 15x widefield eyepiece supplied

Eyepiece Tube
Monocular, fixed inclination (usually 45)

Illumination
Mirror for natural light, supplied with sub-stage illuminator for artificial light

Coarse Adjustment Range
Approximately 20 mm (manual control)

Fine Adjustment Range
Approximately 2 mm with graduated precision

Working Stage
Mechanical stage 120 mm x 120 mm, with slide holder and X-Y axis movement

Still Image Capture Resolution
Not applicable (optical only)

Image Format
Visual only, projected through eyepiece

Interpupillary Distance
Not adjustable, as monocular model

Objective Achromatic
Three objective lenses (typically 10x, 40x, 100x oil immersion), achromatic type

Condenser
Abbe condenser, N.A. 1.25, adjustable with iris diaphragm

Light Source
Mirror and sub-stage lamp (6V/20W) or equivalent

Nosepiece
Revolving, triple or quadruple ball bearing design

Color
White and black (typical finish)

Stage Movement
X-Y mechanical movement with precision controls

Body Material
Mild steel with corrosion-resistant finish

Power Supply
220V AC for sub-stage lamp

Usage
Pathology labs, educational institutions, clinical diagnostics

Diopter Adjustment
Not applicable (monocular head)

Packaging
Supplied in polystyrene packing with instruction manual

Mild Steel PATHOLOGICAL MONOCULAR MICROSCOPE BM-8mo Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Gujarat

Payment Terms
Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C), Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Strong packaging

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Mild Steel PATHOLOGICAL MONOCULAR MICROSCOPE BM-8mo About

> One 10x Wide Field Eye -piece.
> 4 nos. Objectives, Parafocal Achromatic, 4x, 10x, 40x SL and 100x SL Oil immersion.
> Stage : Horizontal Mechanical of size 120 X 125mm min.
> Illumination : LED Light with on/off switch, light intensity regulator and Plano concave mirror attachment suitable for 220V, 50 Hz. AC supply.

Also available without ISI mark

Additional Information:

Production Capacity: 2000
Delivery Time: 2
Packaging Details: Warranty Card/ Lenses Cleaner/ Styrofoam box/ Cardboard Box for Outer Packing

Robust Mild Steel Construction

Built with a solid mild steel body and corrosion-resistant finish, the BM-8mo microscope ensures excellent durability for long-term use in demanding laboratory environments. This construction provides stability and minimizes vibrations, allowing for reliable and precise observations over time.

Precision Mechanical Stage and Controls

The microscope features a 120 mm x 120 mm X-Y mechanical stage with precision controls. This design aids in precise slide movements, allowing users to examine samples thoroughly and efficiently. Both coarse and fine focusing systems deliver accurate adjustments for crisp imaging.

Versatile Illumination Options

Equipped with both a mirror for natural light and a 6V/20W sub-stage lamp, the BM-8mo enables effective sample illumination in varied settings. The adjustable Abbe condenser with iris diaphragm further enhances image clarity under different lighting conditions.

Optimized for Pathology and Education

Designed to meet the needs of pathology labs, educational institutions, and clinics, this monocular microscope is reliable for routine diagnostic work and teaching. It offers straightforward operation, robust construction, and easy maintenance, making it ideal for frequent use.

FAQ's of Mild Steel PATHOLOGICAL MONOCULAR MICROSCOPE BM-8mo:

Q: How does the BM-8mo microscope achieve precise focusing?

A: The microscope is equipped with both coarse and fine coaxial focus knobs, allowing for rough positioning and delicate, precise adjustments. The fine focus enables viewing of critical details needed in pathology and diagnostics.

Q: What are the main benefits of using a mild steel construction for the microscope body?

A: The mild steel frame offers superior durability and stability, resisting corrosion and maintaining structural integrity in busy lab environments. This robust build ensures the microscope remains accurate and reliable during prolonged use.

Q: Where is the BM-8mo microscope commonly used?

A: This microscope is designed for use in pathology labs, clinical diagnostic settings, and educational institutions, where routine examination of slides for biological samples is essential.

Q: What lighting options are available with the BM-8mo?

A: The BM-8mo provides both a mirror for natural light and a 6V/20W sub-stage lamp for artificial illumination. This flexibility ensures reliable performance in various laboratory lighting conditions.

Q: How should users maintain the BM-8mo microscope for optimal performance?

A: Routine cleaning of anti-fungal optics, careful handling of mechanical parts, and periodic replacement of the supplied spare bulb and fuse will help maintain optimal functionality. The supplied dust cover is recommended for storage.

Q: What is included in the packaging of the BM-8mo microscope?

A: The microscope comes securely packed in polystyrene, along with an instruction manual, a replacement bulb, a fuse, and a dust cover, ensuring safe transport and immediate usability upon delivery.
