Research Trinocular Microscope X-2, For Laboratory, Halogen

Send Inquiry

Request To Call Back

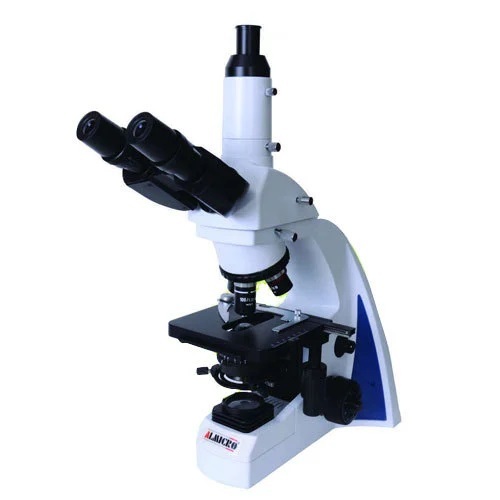

Research Trinocular Microscope X-2, For Laboratory, Halogen

Name: Research Trinocular Microscope X-2, For Laboratory, Halogen
Brand: LABCARE INSTRUMENTS & INTERNATIONAL SERVICES
Price: 22000 INR
Availability: InStock

Price 22000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Research Trinocular Microscope X-2, For Laboratory, Halogen Specification

Features
Infinity optics, wide field eyepiece, sturdy stand, precise mechanical stage, trinocular camera port, high-intensity halogen illumination

Spare Parts
Halogen lamp, fuse, dust cover, immersion oil, user manual

View Head
Trinocular, rotatable 360

Focus System
Coarse and fine coaxial focusing system

Theory
Infinity corrected optical system

Drawtube
Trinocular

Sensor
Not applicable (Standard visual microscope)

Resolution
High resolution depending on objective and eyepiece used

Interface
Trinocular port for camera attachment

Frame Rate
Depends on attached camera (optional)

Focal Distance
Varies by objective lens, typically 160mm

Magnification
40X to 1000X (with supplied objectives and eyepieces)

Dimensions
Approx. 430mm x 270mm x 170mm

Focus Range
Coarse and fine focus adjustment

Eyepieces
WF10X/18mm (Wide Field)

Eyepiece Tube
Trinocular head, inclined at 30

Illumination
Halogen lamp 6V 20W, adjustable intensity

Coarse Adjustment Range
Approximately 30mm

Fine Adjustment Range
0.002mm precision

Working Stage
Double layer mechanical stage, 140mm x 140mm with X-Y movement range 75 x 50mm

Still Image Capture Resolution
Depends on attached camera (optional)

Video Capture Resolution
Depends on attached camera (optional)

Image Format
Depends on attached camera (optional)

Interpupillary Distance
Adjustable, 48mm-75mm

Objective Achromatic
Achromatic objectives: 4X, 10X, 40X (S), 100X (S, Oil)

Condenser
Abbe condenser, N.A. 1.25 with iris diaphragm

Light Source
Halogen 6V/20W lamp

Color
White and black finish

Application
Medical, research, education laboratories

Body Material
Metal, corrosion-resistant finish

Stage Movement
Coaxial X-Y stage adjustment knobs

Diopter Adjustment
Available on left eyepiece

Revolving Nosepiece
Quadruple, ball bearing inner movement

Voltage
220V/110V AC selectable

Packaged Contents
Main unit, objectives, eyepieces, power cord, spare lamp, dust cover

Research Trinocular Microscope X-2, For Laboratory, Halogen Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Gujarat

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Strong packaging

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Research Trinocular Microscope X-2, For Laboratory, Halogen About

Take advantage of this hot deal: the Research Trinocular Microscope X-2 is an eminent choice for laboratories seeking elite quality. With a redoubtable metal body and a corrosion-resistant lustrous finish, this microscope delivers accuracy and durability. Its infinity-corrected optical system and advanced halogen illumination ensure high-resolution imaging for medical and research applications. Featuring a quadruple nosepiece, fine and coarse focus adjustments, and a 360 rotatable trinocular head, this elite instrument supports camera integration, making specimen analysis convenient and professional for every user.

Unmatched Laboratory Performance & Robust Features

The Research Trinocular Microscope X-2 stands out with its premium metal, corrosion-resistant build, and high-precision mechanics. It offers an inclined trinocular head for comfortable extended use, efficient halogen illumination for clear images, and smooth X-Y stage adjustments. Elite achromatic objectives and infinity optics provide lustrous clarity while the quadruple nosepiece ensures quick switching. Its redoubtable stability and 360 rotation make it ideal for research, education, and diagnostics in demanding laboratory environments.

Secure Packing, Export Markets & Sample Policy Details

Packing & Dispatch of the Research Trinocular Microscope X-2 adheres to the highest valuation and safety standards, ensuring the unit arrives perfectly handed over to clients. Secure foam-lined boxing protects essential components, while international shipping options are available. Eminent export markets include Asia, Europe, the Middle East, and Africa. Sample requests can be entertained as per agreed policy, subject to mutual understanding and formal valuation prior to shipment, reinforcing our reputation as a distinguished exporter and supplier.

FAQ's of Research Trinocular Microscope X-2, For Laboratory, Halogen:

Q: How does the infinity-corrected optical system benefit the microscope's performance?

A: The infinity-corrected optical system delivers edge-to-edge clarity, ensures high-resolution imaging at all magnification levels, and reduces optical aberrations, making it ideal for advanced laboratory analysis.

Q: What materials and features make the Trinocular Microscope X-2 suitable for laboratory use?

A: The microscope is constructed from redoubtable metal with a corrosion-resistant finish. It features precise mechanical controls, an efficient halogen lamp, a sturdy double-layer stage, and is equipped with quality achromatic objectives for reliable, high-resolution performance.

Q: Where can the Research Trinocular Microscope X-2 be applied?

A: This versatile microscope is designed for use in medical, research, and education laboratories-serving healthcare professionals, scientists, and students in need of detailed visual analyses.

Q: What are the packaging and shipping procedures for the product?

A: Each unit undergoes thorough packing and dispatch, utilizing foam-lined protective cases and is securely handed over for shipping to ensure all accessories are intact upon delivery to international clients.

Q: How is camera integration handled on the Trinocular Microscope X-2?

A: A dedicated trinocular port enables easy attachment of a range of compatible cameras, supporting diverse imaging and documentation needs in research and professional laboratory work.

Q: What does the microscope package include upon delivery?

A: The boxed contents comprise the main unit, objective lenses, eyepieces, a power cord, spare halogen lamp, dust cover, user manual, and sample-use immersion oil-offering a comprehensive setup for immediate use.
