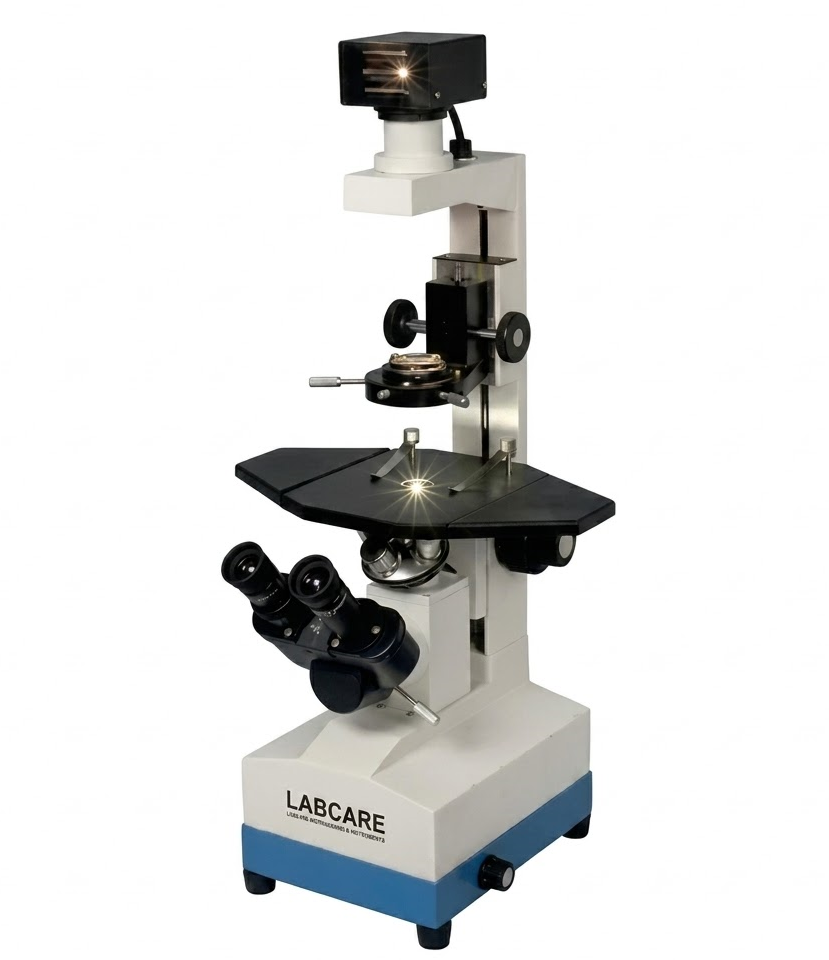

Inverted Tissue Culture

Name: Inverted Tissue Culture
Brand: LABCARE INSTRUMENTS & INTERNATIONAL SERVICES
Price: 35000 INR
Availability: InStock

Price 35000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Inverted Tissue Culture Specification

Spare Parts
Dust cover, power cord, fuse, extra bulb

Features
Ergonomic design, stable base, easy operation, anti-fungal optics, digital imaging capability

Focus System
Coarse and fine coaxial focusing system

View Head
Trinocular (for digital camera and eyepieces)

Theory
An inverted tissue culture microscope is designed for observing living cells and tissue cultures at the bottom of culture vessels. The optical system is located below the stage, allowing for observation of samples in petri dishes or culture flasks.

Drawtube
Trinocular

Sensor
High sensitivity CMOS

Resolution
1920 x 1080 pixels

Interface
USB 2.0, HDMI

Frame Rate
30fps at Full HD

Focal Distance
45mm

Magnification
40X to 400X

Dimensions
510mm x 330mm x 580mm

Focus Range
Up to 15mm

Eyepieces
Wide field 10X/22mm paired

Eyepiece Tube
Inclined at 45, 360 rotatable

Illumination
LED with variable intensity

Coarse Adjustment Range
15mm

Fine Adjustment Range
0.002mm

Working Stage
Mechanical stage with 120mm x 180mm size, X-Y movement 75mm x 50mm

Still Image Capture Resolution
2MP/5MP selectable

Video Capture Resolution
Full HD 1080p

Image Format
JPEG, BMP, PNG

Interpupillary Distance
55 - 75mm adjustable

Objective Achromatic
4X, 10X, 20X, 40X (Long Working Distance)

Condenser
Long Working Distance condenser, NA 0.3, pre-centered

Light Source
LED, 3W or Halogen 6V/20W

Stage Movement
Ball-bearing guide for smooth operation

Microscope Body
Die-cast aluminum with anti-rust coating

Camera Integration
Supports digital imaging and real-time video

Operating Temperature
10C - 40C

Weight
Approx. 18 kg

Relative Humidity
Less than 85% RH

Compatibility
Compatible with PC and large display monitors

Safety
Overheat protection on illumination circuit

Power Supply
AC 220V/110V 10%, 50/60Hz

Inverted Tissue Culture Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Inverted Tissue Culture

Inverted Tissue Culture Microscope is used for tissue culture examination.
This Microscope has coarse and fine adjustment, incident LED Light with variable light control arrangement. It comes equipped withlong working distance objectives and binocular head, complete with following optics in box :
LWD Objectives: 5x, 10x, 20x, 40x Wide Field
Eye pieces: 10x (Paired)
Packaging: Inner Thermocol/Styrofoam Packing and Outer Cardboard Box

Advanced Imaging and Ergonomic Operation

Designed for seamless integration with PCs and large display monitors, this microscope features a high-sensitivity CMOS sensor with selectable still image and video capture resolutions, providing clear, real-time digital imaging. Its trinocular head, adjustable interpupillary distance, and ergonomic, rotatable eyepiece tube ensure operator comfort during extended sessions.

Precision and Versatility in Tissue Culture

The inverted optical system, long working distance objectives, and spacious mechanical stage make it ideal for observing samples within petri dishes or flasks. The ball-bearing guided stage ensures accurate X-Y movement, while the pre-centered condenser delivers consistent illumination for critical tissue culture applications.

Reliable Safety and Durable Construction

Built with a sturdy base and anti-corrosion finish, the microscope includes essential safety features such as overheat protection on the illumination circuit. Supplied with replaceable spare parts, including bulbs and fuses, it is optimized for long-lasting, worry-free laboratory and institutional use.

FAQ's of Inverted Tissue Culture:

Q: How do I capture images and video with the inverted tissue culture microscope?

A: You can easily capture still images at 2MP or 5MP resolution and record video at full HD 1080p using the built-in digital camera. The device supports standard image formats like JPEG, BMP, and PNG, and connects to a PC or monitor via USB 2.0 or HDMI for real-time observation and documentation.

Q: What makes this microscope suitable for observing tissue cultures?

A: The inverted design positions the optical system below the stage, allowing you to observe living cells at the bottom of culture vessels like petri dishes and flasks. The long working distance objectives and spacious mechanical stage facilitate easy handling of delicate specimens without obstruction.

Q: When should I use the overheat protection feature on the illumination circuit?

A: The overheat protection feature works automatically, ensuring the LED or halogen light source operates safely. It is especially beneficial during prolonged usage or high-intensity illumination settings to prevent damage to the microscope and ensure user safety.

Q: Where can this microscope be installed and used effectively?

A: This unit is ideal for laboratories, universities, hospitals, and research centers. It operates efficiently under conditions ranging from 10C to 40C with relative humidity below 85%, making it suitable for most indoor scientific settings across India.

Q: What is the process for adjusting focus and stage movement?

A: Fine focus is achieved using the coaxial coarse and fine focusing system, offering a total adjustment range of up to 15mm, with precision down to 0.002mm. The mechanical stage measures 120mm x 180mm and offers smooth X-Y movement through ball-bearing guides for reliable specimen positioning.

Q: How does the microscope benefit laboratory research and education?

A: By providing clear visualization and high-resolution digital documentation of living cell cultures, this microscope enables researchers and students to analyze biological processes in real time. Its user-friendly design and compatibility with digital displays enhance collaborative learning and data sharing.
