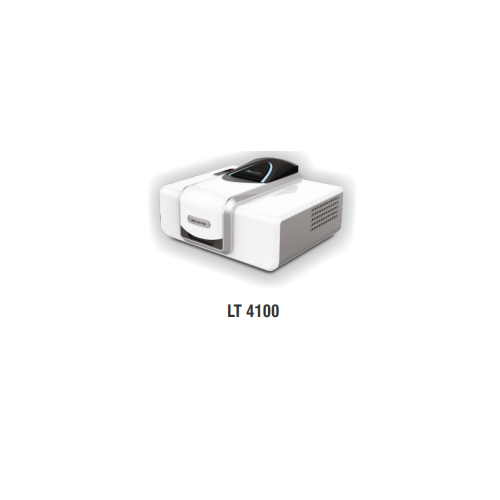

Labtroniks FT-IR SPECTROMETER

Name: Labtroniks FT-IR SPECTROMETER
Brand: LABCARE INSTRUMENTS & INTERNATIONAL SERVICES
Price: 1950000.0 INR
Availability: InStock

Price 1950000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Labtroniks FT-IR SPECTROMETER Specification

Power Source
Electric

Frequency
50/60 Hz

Automation Grade
Automatic

Feature
High sensitivity, Rapid scanning, Compact design

Temperature Range
Room Temperature Operation

Model No
LT 4100

Measurement Range
4000 - 400 cm1

Core Components
Interferometer, IR source, Detector

Accuracy
Better than 0.01 cm1

Voltage
220-240 V

Equipment Materials
High-grade engineered polymer and metal

Type
FT-IR Spectrometer

Usage
Laboratory Spectroscopy

Display Type
Digital

Dimension (L*W*H)
450 x 350 x 180 mm

Weight
Approx. 15 kg

Atmospheric Suppression
Yes

Purge System
Integrated purge system for water vapor and CO2 removal

Data Output
USB and LAN connectivity

Laser
Built-in He-Ne

Detector Type
High sensitivity DLATGS

Sampling Accessories
Comprehensive types for solids, liquids, and gases

Interferometer Type
Michelson interferometer

Software
PC-based intuitive control and analysis software

Scan Speed
Maximum 20 spectra/sec

Signal to Noise Ratio
> 30,000 : 1

Spectral Resolution
1 cm1

Operating Environment
Temperature 15-30C, Humidity < 70% RH

Labtroniks FT-IR SPECTROMETER About

FT IR SPECTROMETER

The FT IR Spectrometer is a high performance analytical instrument designed for rapid identification and characterization of organic and inorganic materials using Fourier Transform Infrared spectroscopy. It delivers accurate spectral analysis with excellent sensitivity and resolution, making it suitable for research laboratories, pharmaceutical industries, chemical analysis, quality control, environmental testing, and educational institutions.

FEATURES

Fourier Transform Infrared technology

High spectral resolution

Excellent wavelength accuracy

High sensitivity and signal stability

Fast spectrum acquisition

User friendly software interface

Wide spectral measurement range

Automatic background correction

USB connectivity for data transfer

Compact and robust construction

APPLICATIONS

Research laboratories

Universities and educational institutions

Pharmaceutical industries

Chemical laboratories

Polymer and material analysis

Food and beverage testing

Environmental monitoring

Quality control laboratories

BENEFITS

Fast and accurate material identification

Reliable qualitative and quantitative analysis

Excellent repeatability and precision

Easy operation and maintenance

Long term stable performance

Suitable for routine and advanced analytical applications

Advanced Spectral Performance

Achieve high-precision analysis with a spectral resolution of 1 cm1 and superior signal-to-noise ratio of >30,000:1. The Labtroniks FT-IR Spectrometer ensures quality results, thanks to its cutting-edge DLATGS detector and rapid scan speed of up to 20 spectra per second. This means you can capture accurate data swiftly, vital for time-sensitive research projects.

Versatile Sampling and Intuitive Control

Analyze a wide range of samples-solids, liquids, and gases-using comprehensive sampling accessories. The intuitive PC-based software offers streamlined control and robust data analysis, while USB and LAN connectivity simplify data export and sharing. This makes operation and integration with laboratory workflows efficient and user-friendly.

Designed for Maximum Reliability

Engineered with a durable polymer-metal structure, integrated purge system, and built-in He-Ne laser, the instrument operates reliably across a controlled environment (15-30C, <70% RH). Its compact footprint and automatic operation make it well-suited for both research and routine use in busy laboratory settings.

FAQ's of Labtroniks FT-IR SPECTROMETER:

Q: How does the Labtroniks FT-IR Spectrometer ensure high measurement accuracy?

A: The spectrometer uses a high-sensitivity DLATGS detector and a Michelson interferometer to achieve a spectral resolution better than 0.01 cm1, ensuring precise analysis for demanding laboratory applications.

Q: What types of samples can be analyzed with this FT-IR spectrometer?

A: With its comprehensive sampling accessories, the LT 4100 can measure solids, liquids, and gases, offering flexible options for diverse spectroscopy needs.

Q: When is the atmospheric suppression feature useful during measurements?

A: Atmospheric suppression is beneficial when you need to eliminate interference from water vapor and CO2, particularly during sensitive applications or analyses requiring high baseline stability.

Q: Where can the Labtroniks FT-IR Spectrometer be installed?

A: Designed for laboratory spectroscopy, the compact and sturdy spectrometer fits easily on standard laboratory benches and operates reliably within a room temperature range of 15-30C and humidity below 70% RH.

Q: What is the process for exporting and analyzing data?

A: Data can be conveniently exported via USB or LAN connections. The included PC-based intuitive software allows for detailed control and in-depth post-acquisition analysis, streamlining workflow and data management.

Q: How does the integrated purge system benefit users?

A: The integrated purge system removes water vapor and carbon dioxide from the sample environment, greatly reducing unwanted spectral interference and improving the quality of your analytical results.
