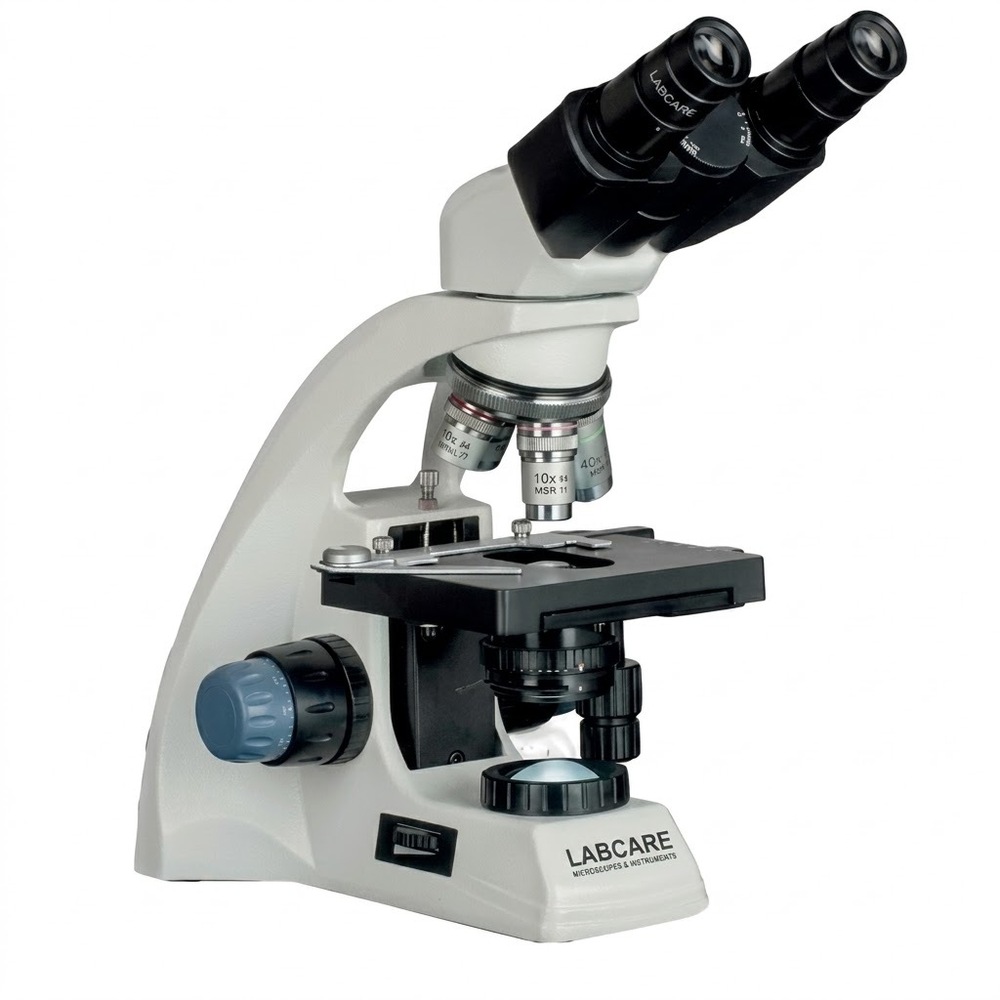

Research Binocular Microscope (AXL BINO)

Send Inquiry

Request To Call Back

Research Binocular Microscope (AXL BINO)

Name: Research Binocular Microscope (AXL BINO)
Brand: LABCARE INSTRUMENTS & INTERNATIONAL SERVICES
Price: 22000 INR
Availability: InStock

Price 22000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Research Binocular Microscope (AXL BINO) Specification

Focus System
Coaxial coarse & fine focus adjustment mechanism

View Head
Binocular head, 45 inclined, 360 rotating

Spare Parts
Supplied with spare bulb, fuse, immersion oil & dust cover

Features
Anti-fungal coating on optics, heavy-duty base, precision movements, ergonomic design

Theory
Optical microscope for high-precision research observation.

Drawtube
Binocular, 360 rotatable, inclined at 45

Sensor
Not applicable (Optical Only)

Resolution
Depends on objective/eyepiece selected (optical)

Interface
Standard mechanical stage and optical interfaces

Frame Rate
Not applicable (optical)

Focal Distance
Standard to research-grade, long working distance objectives supported

Magnification
40X to 1000X (with supplied objectives and eyepieces)

Dimensions
Approx. 370 mm x 235 mm x 185 mm (L x W x H)

Focus Range
Coarse and fine adjustment

Eyepieces
Widefield 10X paired eyepiece (with eyeguard)

Eyepiece Tube
Binocular, inclined at 45, rotatable through 360

Illumination
Built-in halogen/LED illumination with intensity control

Coarse Adjustment Range
30 mm or above

Fine Adjustment Range
Fine focusing knob, graduation: 0.002 mm

Working Stage
Mechanical stage, size 140 x 120 mm with coaxial drive & vernier

Still Image Capture Resolution
Not applicable (optical)

Video Capture Resolution
Not applicable (optical)

Image Format
Not applicable (optical)

Interpupillary Distance
55-75 mm adjustable

Objective Achromatic
Achromatic 4X, 10X, 40X (spring), 100X oil (spring)

Condenser
Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

Light Source
Built-in halogen lamp 6V/20W or LED as per model

Stage Movement
Stage movement X-Y: 75 mm x 50 mm

Finish
Scratch-resistant, chemical-resistant enamel finish

Power Supply
220-240V AC/50-60 Hz

Color
White and black (as shown in image)

Head Lock System
Securing screw for head to prevent movement during transport

Nosepiece
Quadruple revolving nosepiece, ball bearing type for precise objective alignment

Diaphragm
Iris diaphragm with swing-out filter holder

Base
Sturdy, vibration-free heavy-duty base with anti-skid rubber feet

Research Binocular Microscope (AXL BINO) Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Gujarat

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Strong packaging

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About Research Binocular Microscope (AXL BINO)

Head: Binocular Head, Inclined at 30, 360 Rotatable, lnterpupillary Distance 54-75 mm, Diopter Adjustable Eyepiece: Wide Field Eyepiece WF 10X/1 8mm Objective : Achromatic Objectives 4x, 10x, 40xs, 100xs(oil) Viewing Head : Articulated Free Trinocular Head, 30inclined, lnterpupillary Distance 54-75mm Focusing System : Coaxial Coarse and Fine Adjustments, Fine Division 0.002mm, Coarse Stroke 36mm Supplied With An Adjustable Rack Stop To Prevent Damage To Sample And Objectives, The Coarse Adjustment Are Equipped With Friction Control +/5 5 On Left Tube Nosepiece : Reverse Quadruple Nosepiece (inward facing) Stage: Double Layer Mechanical Stage 110x125mm, Moving Range 30x75mm Adjustable, Powered by 110-240V Adapte

Additional Information:

Production Capacity: 2000
Delivery Time: 2 DAYS
Packaging Details: Warranty Card/ Lenses Cleaner/ Styrofoam box/ Cardboard Box for Outer Packing

High-Precision Optical Performance

The AXL BINO Research Binocular Microscope achieves outstanding image clarity and resolution through its achromatic objectives and widefield eyepieces. The quadruple ball-bearing nosepiece ensures rapid and precise objective changes, enabling users to easily switch between desired magnifications. Advanced optical coatings provide bright, high-contrast images essential for research work.

Ergonomic and Durable Construction

Designed with user comfort and safety in mind, the binocular head is inclined at 45 and fully rotatable, reducing neck strain during prolonged observation. The anti-skid, heavy-duty base minimizes vibrations, while the enamel coating resists both scratches and chemicals. An integrated head-lock system secures the microscope during transport, protecting sensitive alignment.

Versatile and User-Friendly Features

The mechanical stage, with fine X-Y controls, allows precise specimen positioning. Coaxial coarse and fine focusing delivers smooth adjustment, with fine graduations up to 0.002 mm. Built-in illumination with adjustable intensity assures optimal lighting. Wide interpupillary and ergonomic adjustments make the unit comfortable for different users, supporting extended research sessions with ease.

FAQ's of Research Binocular Microscope (AXL BINO):

Q: How do I change the magnification on the AXL BINO Research Binocular Microscope?

A: To change magnification, simply rotate the quadruple revolving nosepiece to switch between the 4X, 10X, 40X, and 100X (oil) achromatic objectives. Combined with the widefield 10X eyepieces, you can achieve magnifications from 40X to 1000X.

Q: What are the main benefits of the AXL BINO's design for research applications?

A: The microscope provides stable viewing through its robust, anti-vibration base and anti-skid feet. Its ergonomic 45 inclined, 360 rotatable head reduces user fatigue, while anti-fungal optic coatings and chemical/scratch-resistant finish ensure longevity and reliable performance in demanding lab environments.

Q: When should I use the iris diaphragm and swing-out filter holder?

A: The iris diaphragm and filter holder are used to adjust light intensity and contrast during observation. Adjust them whenever you need to enhance specimen visibility or reduce glare, particularly when examining delicate or transparent samples.

Q: Where can I use the AXL BINO microscope effectively?

A: This microscope is ideal for use in laboratories, educational institutions, medical research centers, and industrial facilities where high-precision optical research is required. Its sturdy design accommodates both stationary and mobile setups.

Q: What is the process for fine focusing a specimen?

A: Once the specimen is in view using the coarse focus knob, use the fine focus adjustment (graduated at 0.002 mm) for sharp, precise focusing. This dual focusing mechanism ensures clarity, even at high magnifications.

Q: How do I maintain the microscope for optimal performance?

A: Keep the optics clean by using the dust cover when not in use and cleaning with lens-safe materials. Replace the halogen bulb or LED module as needed; spares are provided. Use only the supplied immersion oil for the 100X objective, and store in a dry environment to protect against fungal growth.

Q: What spare parts and accessories are included with this microscope?

A: The AXL BINO comes with a spare bulb (halogen or LED, depending on the model), fuse, immersion oil for high-power objectives, and a dust cover for protective storage.
