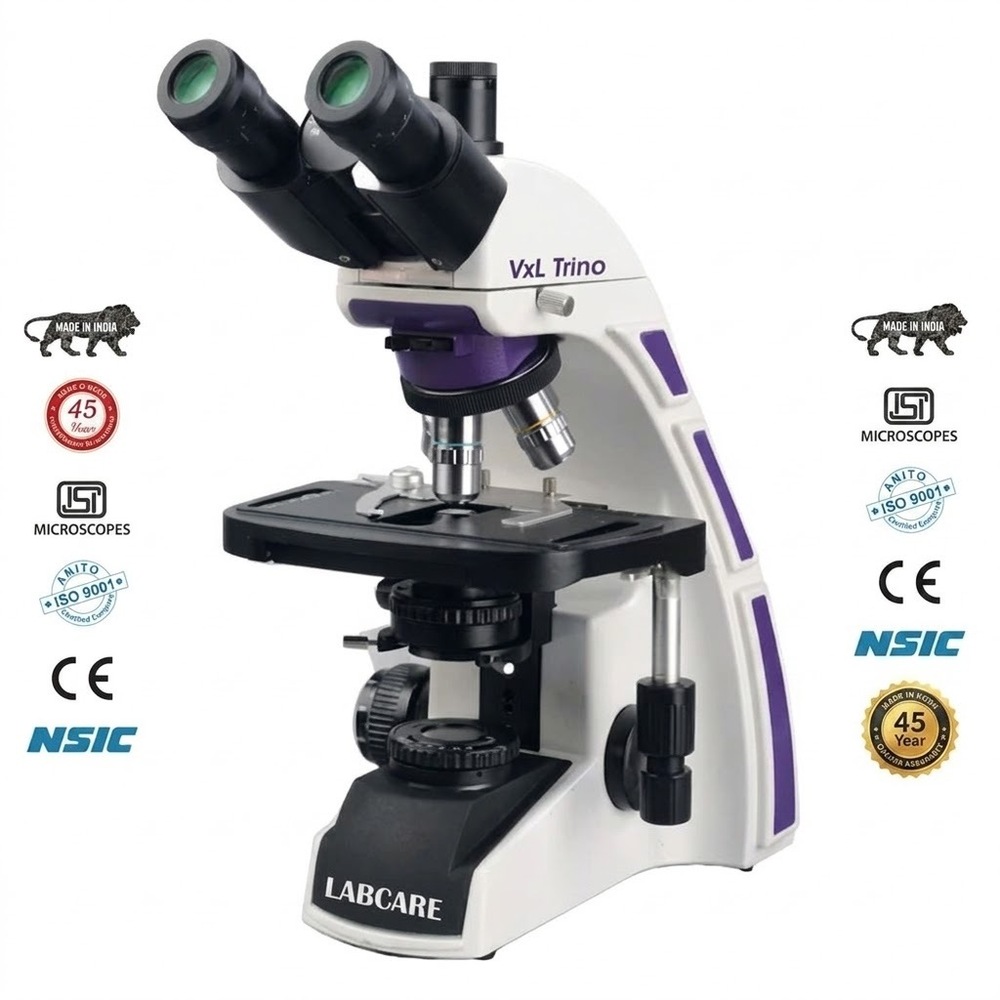

Send InquiryTRINOCULAR MICROSCOPE - VXL TRINO
Price 80000 INR/ Piece
MOQ : 1 Piece
TRINOCULAR MICROSCOPE - VXL TRINO Specification
- Features
- Ergonomic design, anti-fungal optics, dust cover, and universal power supply.
- View Head
- Trinocular head, 45 inclined, 360 rotatable.
- Spare Parts
- Eyepieces, objectives, stage clips, fuse (as available).
- Focus System
- Coaxial coarse and fine focusing adjustment, tension adjustable.
- Theory
- Compound microscope with advanced research capabilities for clinical, laboratory, and educational applications.
- Drawtube
- Trinocular head, 360 rotatable with 45 inclined viewing.
- Sensor
- Dedicated microscope camera compatible (optional).
- Resolution
- Up to 1920 x 1080 (camera-dependent).
- Interface
- USB, HDMI (via compatible camera attachment).
- Frame Rate
- Up to 30 fps with digital camera (optional, and camera-dependent).
- Focal Distance
- 160 mm tube length.
- Magnification
- 40X to 1000X (standard objectives and eyepieces).
- Dimensions
- Approx. 420mm (H) x 190mm (W) x 280mm (D).
- Focus Range
- Coarse and fine focusing, total vertical travel approx. 25 mm.
- Eyepieces
- Wide field 10X/18 mm paired eyepieces.
- Eyepiece Tube
- Trinocular tube, suitable for camera attachment and simultaneous observation.
- Illumination
- Built-in LED illumination, adjustable intensity,
- Coarse Adjustment Range
- 15 mm per revolution, total range approx. 20 mm.
- Fine Adjustment Range
- 0.002 mm per graduation.
- Working Stage
- Double-layer mechanical stage, 135 x 125 mm with coaxial X-Y controls.
- Still Image Capture Resolution
- Up to 5MP or as supported by attached camera.
- Video Capture Resolution
- 1920 x 1080 (Full HD, camera-dependent).
- Image Format
- JPG, BMP, PNG (with camera, software-dependent).
- Interpupillary Distance
- 55 - 75mm adjustable.
- Objective Achromatic
- Achromatic 4X, 10X, 40X (spring), 100X oil (spring, oil immersion).
- Condenser
- Abbe condenser NA 1.25 with iris diaphragm and filter holder.
- Light Source
- LED, bright field illumination with variable intensity.
- Body Material
- Heavy-duty die-cast alloy with chemical resistant finish.
- Objective Type
- DIN standard achromatic objectives.
- Packing
- Supplied in thermocol case with manual and warranty card.
- Stage Movement
- Travel range 75 mm (X-axis), 50 mm (Y-axis).
- Weight
- Approx. 6.5 kg.
- Filter Holder
- Provided for blue, green, and yellow filters.
- Power Supply
- 100-240V AC, 50/60 Hz.
TRINOCULAR MICROSCOPE - VXL TRINO Trade Information
- Minimum Order Quantity
- 1 Piece
- FOB Port
- Gujarat
- Payment Terms
- Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)
- Supply Ability
- 100 Pieces Per Month
- Delivery Time
- 7 Days
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Packaging Details
- Strong packaging
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
About TRINOCULAR MICROSCOPE - VXL TRINO
Optical System : Finite Optical System
Eyepiece: PL 10x/23mm High Eyepoint Eyepiece, Diopter Adjustment +/-5
Objective : 45mm DIN Infinity Color Corrected Plan Achromatic Objective: 4X, 10X, 40X(S), 100X(S,Oil)
Viewing Head : Articulated Free Trinocular Head, 30inclined, lnterpupillary Distance 50-75mm
Nosepiece : Backward Quintuple or Quadruple Objective Nosepiece
Stage : 220 x 148mm X-axis Low Hand Position Double Mechanical Stage(steel wire transmission), 76 x 50mm, Presion 0.1 mm , Damped Double Slide Clamp
Condenser : Height Adjustable Abbe Condenser Set Focussing System : Coaxial Coarse and Fine Focus Knobs, Precision 0.002mm
Illumination : 3W LED Lamp with Kohler illumination System
Optional
1. Insert Phase Contrast Apparatus
2. Dry Darkfield Condenser, Oil-darkfiled Condenser
3. Polarizing Device
4. Plan Objective Set, Infinity Plan Achromatic Objective Set
Additional Information:
- Production Capacity: 1000
- Delivery Time: 2
- Packaging Details: Warranty Card/ Lenses Cleaner/ Styrofoam box/ Cardboard Box for Outer Packing
Advanced Research Capabilities
The VXL Trino trinocular microscope was designed for high-level research and professional laboratory work. Its precision optics, including DIN standard achromatic objectives and Abbe condenser, ensure sharp and accurate imaging across a range of magnifications. Compatible with digital cameras, it enables comprehensive analysis and documentation for various scientific, clinical, and educational settings.
Ergonomic and Durable Design
With a robust die-cast alloy body and chemical-resistant finish, this microscope offers long-lasting durability for heavy lab use. The ergonomic structure, smooth coaxial focusing, and adjustable interpupillary distance are engineered to reduce user fatigue during prolonged observation sessions, supporting both comfort and productivity.
User-Friendly Operation and Versatility
The VXL Trino is equipped with user-adjustable LED illumination, wide field eyepieces, a double-layer mechanical stage, and filter holders for vibrant contrast and flexibility. Its trinocular head supports integration with digital cameras via USB or HDMI, offering real-time observation and image capture options for documentation and collaborative work.
FAQ's of TRINOCULAR MICROSCOPE - VXL TRINO:
Q: How does the trinocular head benefit simultaneous observation and imaging?
A: The VXL Trino's trinocular head allows users to observe specimens through the eyepieces while also attaching a digital camera to the third port. This enables real-time viewing, image capturing, and recording without interrupting direct observation, which is ideal for teaching, presentations, or documenting research findings.Q: What is the process for changing and using filters on this microscope?
A: The integrated filter holder accommodates blue, green, and yellow filters, enabling users to enhance image contrast and clarity during observation. Simply insert the desired filter into the holder above the light source for immediate effect. Changing filters can be done easily during use for various staining techniques or to reduce eye strain.Q: Where can the VXL Trino microscope be used?
A: This microscope is versatile and suitable for use in clinical laboratories, research institutions, educational environments, and industrial settings. Its flexible magnification range, robust design, and compatibility with digital imaging systems make it ideal for anywhere high-resolution microscopic analysis is required.Q: What are the benefits of the built-in LED illumination system?
A: The built-in LED illumination system provides consistent, bright, and adjustable lighting for sample observation. It consumes less energy, emits minimal heat, and offers a long service life without frequent bulb replacements, ensuring reliable, comfortable viewing during extended sessions.Q: How do I attach and use a digital camera with the microscope?
A: To use a digital camera, simply mount a compatible microscope camera onto the trinocular port. Connect the camera to a PC or monitor via USB or HDMI. This setup allows capturing high-resolution images or videos, live streaming, or conducting image analysis using the preferred software.Q: What is the correct process for focusing on a specimen?
A: Begin by placing your slide on the stage and securing it with the clips. Using the coarse focus knob, bring your sample into rough focus, and then refine the image using the fine focus knob for sharpness. The stage and focus system ensure smooth, precise adjustments without drift.Q: What kind of maintenance and care does the VXL Trino microscope require?
A: Regularly clean optical surfaces with a soft, lint-free cloth and lens cleaner. Cover the microscope with the provided dust cover when not in use and store it in its thermocol case. Periodically check and replace spare parts like eyepieces or fuses as needed, and always follow the maintenance guidelines in the included manual.
