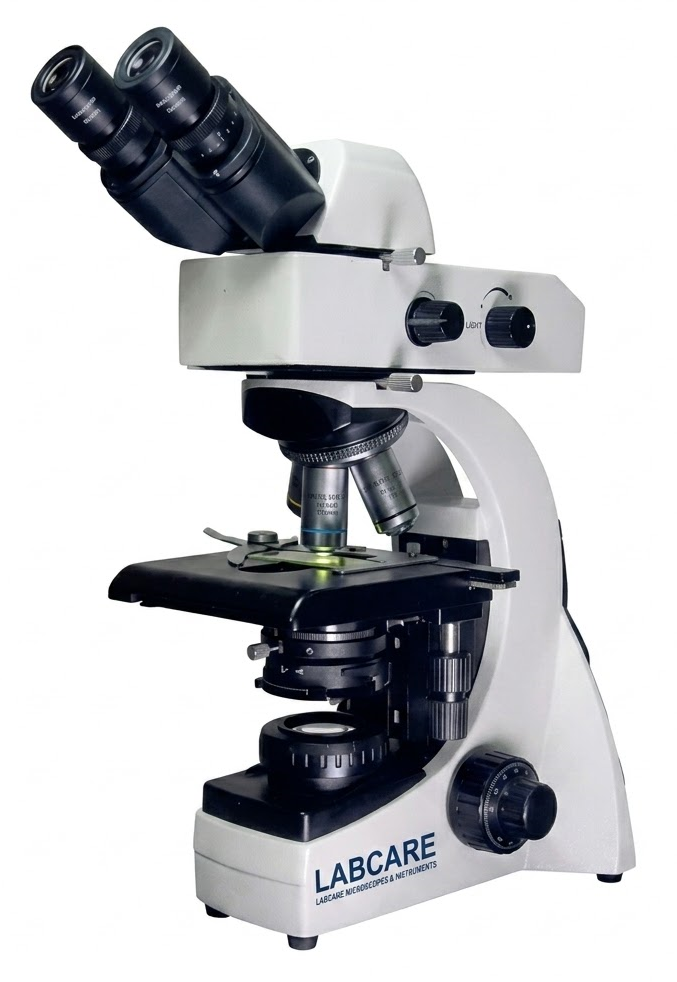

FLUORESCENT MICROSCOPE AFM-50

FLUORESCENT MICROSCOPE AFM-50 About

• ptical Systems: Plan achromatic optics, antifungal & antireflection Coated
• Magnification: 4x, 10x, 40x, 100x (40x to 100x), (60x and 80x optional)
• Observation Head: Sidetoph Trinocula/Binocular head inclined at 30 deg., Swivelling 360 deg. rotatable. with Interpupillary distance of 48-75mm. Three Way trinocular tube with simultaneous view on camera and eye piece.
•  Nose-Piece:   Quadruple Nose Piece.
•  Eyepiece: Wide Field 10x eye-piece with 25mm/25mm F.O.V (Anti-Fungal) with rubber eyecups.
• Mechanical Stage: 210mm X 140mm and X/Y travel range 90mm x 70mm with upper limit stopper, hard ceramic surface dual slide holder.
•  Division: 0.1m Low drive right side movement
• Objective: “ Plan-achromat/HI PLAN/ 4X NA 0.10
•  “ Plan-achromat/HI PLAN/ 10X NA 0.25
• “ Plan-achromat/HI PLAN/ 40X NA 0.65
• “ Plan-achromat/HI PLAN/ 100X NA 1.3
• Condenser: Swing out condenser/Universal condenser for adaptation of switchable condenser heads, NA 0.90 suitable for bright field, phase contrast, and fluorescent. Iris diaphragm with frosted white filter, antifungal & anti-reflection coated. Rack and pinion movements on stainless steel guides
• Focussing Control: Two step Co-axial coarse and fine focussing on both sides, gear systems for smooth operation. Fine Adjustment
• Transmitted illumination: 10W LED illumination, variable control, Up to 60,000 hours of LED life. Universal input 110V-240V AC, 50/60Hz (with battery backup-optional)
• Filters: Single Immuno Fluorescence. Fluorescent
• illumination: Fluorescence imaging function: LED base illumination with LED Light(s) time of 60,000 hours with intensity controller.
