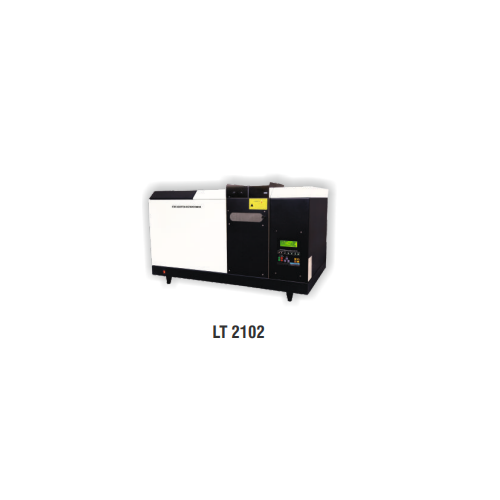

Labtroniks Atomic Absorption Spectrophotometer (Double Beam)

Send Inquiry

Request To Call Back

Labtroniks Atomic Absorption Spectrophotometer (Double Beam)

Name: Labtroniks Atomic Absorption Spectrophotometer (Double Beam)
Brand: LABCARE INSTRUMENTS & INTERNATIONAL SERVICES
Price: 1250000.0 INR
Availability: InStock

Price 1250000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Labtroniks Atomic Absorption Spectrophotometer (Double Beam) Specification

Voltage
220V AC

Power Source
AC Mains Electric

Accuracy
0.5% F.S.

Temperature Range
Room Temperature up to 3000C (flame) / 4500C (graphite)

Automation Grade
Semi-automatic/Automatic

Core Components
Hollow Cathode Lamp, Photomultiplier Tube, Flame Burner, Power Supply

Capacity
1 - 6 Lamps turret (auto) / 1 Lamp manual

Frequency
50 Hz

Feature
Automatic Wavelength Selection, Software Control, Built-in Printer Option, Data Storage

Measurement Range
0.001 to 100 ppm (element dependent)

Model No
LT 2102

Equipment Materials
Stainless steel and powder-coated metal

Type
Double Beam Atomic Absorption Spectrophotometer

Usage
Elemental Analysis/Metals Detection in Various Samples

Display Type
Digital display/LED Display

Dimension (L*W*H)
Approx. 98 x 42 x 55 cm

Weight
Approx. 60 kg

Baseline Stability
0.004 A/30 min

Light Source
Hollow Cathode Lamps/Deuterium Lamp for Background Correction

Detection Limit
Copper 0.01 g/mL

Lamp Current
0 to 10 mA adjustable

Wavelength Range
190 to 900 nm

Repeatability
1% (standard solution, at least 10 times)

Monochromator
1200 lines/mm grating

Lamp Turret
6 Position (Automatic)

Resolution
0.2 nm

Ignition System
Automatic Flame Ignition and Extinguishing

Photometric Range
-0.3 to 2.5 Abs

Signal to Noise Ratio
>200:1

Flame Type
Air/Acetylene or Nitrous oxide/Acetylene

Slit Width
Variable: 0.2, 0.4, 1.0, 2.0 nm

Labtroniks Atomic Absorption Spectrophotometer (Double Beam) About

ATOMIC ABSORPTION SPECTROPHOTOMETER DOUBLE BEAM

The Atomic Absorption Spectrophotometer Double Beam is a high precision analytical instrument designed for accurate quantitative determination of metal elements in liquid samples. Utilizing advanced double beam optical technology, it provides excellent sensitivity, stability, and measurement accuracy for trace elemental analysis. The instrument is widely used in research laboratories, environmental monitoring, pharmaceutical industries, food testing, metallurgy, agriculture, and industrial quality control.

FEATURES

Double beam optical system

High sensitivity elemental analysis

Excellent wavelength accuracy

Automatic background correction

Stable light source and detector

Microprocessor controlled operation

Wide elemental analysis capability

Fast and reliable measurement

User friendly software interface

USB connectivity and data management

Robust and durable construction

APPLICATIONS

Research laboratories

Environmental testing laboratories

Pharmaceutical industries

Food and beverage analysis

Chemical laboratories

Metallurgical industries

Agricultural testing laboratories

Industrial quality control

BENEFITS

Accurate trace metal analysis

High precision and repeatability

Fast analytical performance

Reliable long term stability

Easy operation and maintenance

Suitable for routine and advanced laboratory applications

Precision in Elemental Analysis

Achieve reliable trace metal quantification with the Labtroniks Double Beam Atomic Absorption Spectrophotometer. It boasts a wide photometric and measurement range, exceptional baseline stability, and automatic wavelength selection, allowing for accurate determination of multiple elements within complex matrices. The inclusion of background correction and variable slit width provides enhanced accuracy and suitability for diverse analytical environments.

Advanced Automation and User-Friendly Design

With an automatic six-lamp turret, digital LED display, and intuitive software control, users experience streamlined operation and efficient workflow. Automatic flame ignition and extinguishing enhance safety, while built-in data storage and printer options simplify result management. The robust build ensures long-lasting durability in demanding lab environments, and its AC mains operation allows flexible placement.

FAQ's of Labtroniks Atomic Absorption Spectrophotometer (Double Beam):

Q: How does the Labtroniks Double Beam Atomic Absorption Spectrophotometer improve accuracy in elemental detection?

A: The spectrophotometer uses a double beam optical system, automatic wavelength selection, and background correction via Hollow Cathode or Deuterium lamps. This combination, along with variable slit widths and high-resolution grating, reduces interferences and enhances measurement precision, resulting in an accuracy of 0.5% F.S.

Q: What is the process for switching between different elements during analysis?

A: The instrument is equipped with a 6-position automatic lamp turret, enabling rapid switching between different Hollow Cathode Lamps. The software control and automatic wavelength selection further streamline the transition, supporting multi-elemental analysis without manual intervention.

Q: When should the background correction feature be utilized?

A: Background correction with the Deuterium lamp should be applied when sample matrices contain components that might produce spectral interferences, ensuring that the absorbance measured reflects only the target analyte and not other absorbing species.

Q: Where can this spectrophotometer be effectively used?

A: It is suitable for research laboratories, industrial quality control, environmental analysis, food safety testing, and clinical laboratories-essentially any setting requiring precise metals or elemental detection in complex samples.

Q: What benefits does the automatic flame ignition and extinguishing system offer?

A: Automatic flame ignition and extinguishing ensure operator safety by reducing direct handling of flammable gases, while also increasing operational efficiency and repeatability during sample analysis.

Q: How is data managed and stored in this spectrophotometer?

A: The system includes a built-in printer option for immediate results and data storage capability, allowing users to easily retrieve, review, and manage analytical data for documentation and further analysis.
