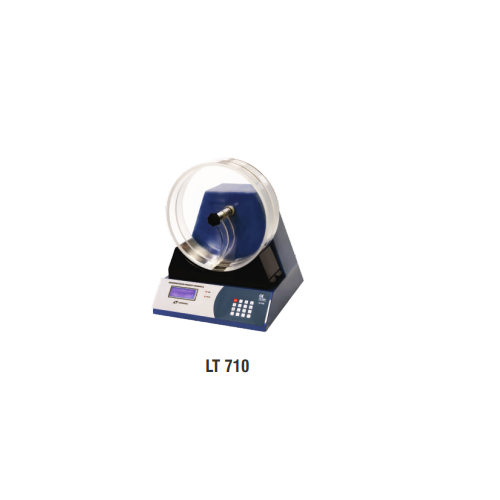

Labtroniks Microprocessor Friability Apparatus (Double Drum)

Send Inquiry

Request To Call Back

Labtroniks Microprocessor Friability Apparatus (Double Drum)

Name: Labtroniks Microprocessor Friability Apparatus (Double Drum)
Brand: LABCARE INSTRUMENTS & INTERNATIONAL SERVICES
Price: 57000.0 INR
Availability: InStock

Price 57000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Labtroniks Microprocessor Friability Apparatus (Double Drum) Specification

Automation Grade
Fully Automatic

Voltage
220 V AC 10%

Measurement Range
0-999 revolutions

Frequency
50 Hz

Core Components
Drums, microprocessor control unit, digital display, keypad

Model No
LT 710

Feature
Programmable countdown timer, dual drum operation, error indication, auto stop at cycle completion

Accuracy
1 revolution

Capacity
Up to 2 drums (Double Drum)

Power Source
220 V AC

Equipment Materials
High quality transparent acrylic drums; body made of powder coated metal

Type
Microprocessor Friability Apparatus

Usage
Used for determining the friability of tablets

Display Type
Microprocessor-based digital display

Dimension (L*W*H)
450 x 355 x 320 mm

Weight
Approx. 9 kg

Drum Size
Diameter 286 mm x 39 mm depth

Operation Mode
Auto and manual mode select

No. of Drums
2 (Double Drum)

Compliance
Meets IP/USP/BP specifications

Drum Rotation Speed
25 rpm (1 rpm)

Preset Revolution Range
1-999 revolutions

Alarm
Audio-visual at cycle end

Preset Time Range
1-999 minutes

Memory Function
Last set value retained

Labtroniks Microprocessor Friability Apparatus (Double Drum) About

MICROPROCESSOR FRIABILITY APPARATUS DOUBLE DRUM

The Microprocessor Friability Apparatus Double Drum is a precision pharmaceutical testing instrument designed to evaluate the mechanical strength and abrasion resistance of tablets by determining their friability. Featuring a microprocessor controlled system with dual rotating drums, it enables simultaneous testing of multiple samples with high accuracy, repeatability, and compliance with pharmacopeial standards. The instrument is ideal for pharmaceutical quality control, research, and formulation development laboratories.

FEATURES

Microprocessor controlled operation

Double drum testing system

Digital display with programmable controls

Accurate timer and rotation speed control

Simultaneous dual sample testing

High precision drive mechanism

Transparent acrylic drums for easy observation

Automatic test completion

Robust and corrosion resistant construction

Easy operation and maintenance

APPLICATIONS

Pharmaceutical industries

Quality control laboratories

Research and development laboratories

Drug formulation laboratories

Universities and educational institutions

Regulatory testing laboratories

BENEFITS

Accurate friability testing

High repeatability and reliability

Improves laboratory productivity

Simple and user friendly operation

Suitable for routine quality control testing

Long service life with dependable performance

Precise Double Drum Operation

The double drum feature enables simultaneous testing of two sets of samples, enhancing laboratory efficiency. Each drum is constructed from transparent acrylic, allowing for clear observation throughout the test cycle. The automatic operation ensures uniform rotational speed, accuracy up to one revolution, and minimizes manual interventions during experiments.

Advanced Microprocessor Control

Equipped with a microprocessor-based control unit, the LT 710 Friability Apparatus offers advanced programmability with countdown timers, revolution presets, and memory functions. Its intuitive keypad and digital display simplify parameter entry and monitoring, while maintaining test accuracy and reproducibility across trials.

Comprehensive Compliance and Safety

Designed to meet international pharmacopeial standards (IP/USP/BP), the apparatus assures reliable and standardized results. Features like audio-visual alarms, error indications, and automatic cycle termination ensure operator safety and safeguard tested samples. The robust construction and precise controls make it suitable for regulated pharmaceutical environments.

FAQ's of Labtroniks Microprocessor Friability Apparatus (Double Drum):

Q: How do I operate the Labtroniks Microprocessor Friability Apparatus for a test cycle?

A: To conduct a test, place the tablets into both acrylic drums, set the desired timer or revolution count on the digital keypad, and select either auto or manual mode. Press start; the apparatus rotates the drums at a fixed 25 rpm, with progress shown on the display. An audio-visual alarm signals the completion of the cycle and the device auto-stops.

Q: What is the benefit of the double drum design in this friability apparatus?

A: The double drum configuration allows you to test two batches of tablets simultaneously. This not only increases throughput but also provides comparative analysis and improves workflow efficiency in laboratory environments.

Q: When should I use the memory function of the apparatus?

A: Utilize the memory function if you routinely perform tests with the same parameters. The apparatus automatically retains the last set value, enabling a quick restart for repetitive testing without re-entering parameters each time.

Q: Where can I use the LT 710 friability apparatus?

A: The LT 710 is designed for laboratory use, primarily in pharmaceutical quality control and research settings. Its compliance with IP/USP/BP makes it suitable for regulated environments that require standardized friability testing.

Q: What is the process for determining the tablet friability with this instrument?

A: Load the required number of pre-weighed tablets into the drum(s), input the test parameters, and start the apparatus. After the cycle completes and alarms sound, retrieve and reweigh the tablets to calculate percentage weight loss, indicating friability.

Q: How does the apparatus ensure measurement accuracy and safety during operation?

A: It maintains rotation accuracy within 1 revolution and provides preset limits for time and revolutions to prevent overexposure. Safety is reinforced by audio-visual alarms, error indications, and an automatic stop at cycle completion.
