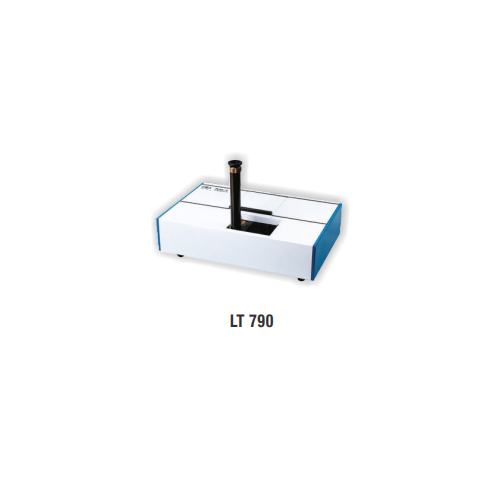

Labtroniks Visual Colorimeter

Name: Labtroniks Visual Colorimeter
Brand: LABCARE INSTRUMENTS & INTERNATIONAL SERVICES
Price: 135000.0 INR
Availability: InStock

Price 135000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Labtroniks Visual Colorimeter Specification

Measurement Range
Depends on color scale used

Accuracy
High visual accuracy for color grading

Model No
LT 790

Temperature Range
Ambient

Core Components
Optical viewing system, light source, color filters

Power Source
Electric (AC Mains)

Voltage
230 V

Frequency
50 Hz

Automation Grade
Manual

Feature
Rapid and accurate color comparision, easy sample change

Equipment Materials
Powder coated steel housing

Type
Visual Colorimeter

Usage
Color measurement and comparison of liquids

Display Type
Visual

Dimension (L*W*H)
Approx. 420 mm x 260 mm x 220 mm

Weight
Approx. 8 kg

Operation
Manual color matching using comparator discs

Power Consumption
12 W

Finish
Anti-corrosive finish for chemical resistance

Application
Used in chemical, pharmaceutical, petroleum, and beverage industries

Calibration
Supplied with calibration accessories

Light Source
Tungsten halogen lamp

Viewing Path Length
20 mm standard (with alternate path lengths available)

Color Standards
Compatible with standard color discs (e.g., Pt-Co, Hazen, APHA, Gardner, Saybolt)

Sample Cells
Glass, supplied with unit

Labtroniks Visual Colorimeter About

VISUAL COLORIMETER

The Visual Colorimeter is a precision laboratory instrument designed for accurate colorimetric analysis and concentration measurement of solutions. It operates by comparing the intensity of transmitted light through colored solutions using selected optical filters. The instrument is widely used in educational laboratories, research institutions, clinical laboratories, water testing facilities, and industrial quality control applications.

FEATURES

High quality optical system

Accurate color comparison

Stable light source

Multiple optical filters

Simple and user friendly operation

Compact and durable construction

Excellent measurement accuracy

Low maintenance design

Reliable and consistent performance

Long service life

APPLICATIONS

Educational laboratories

Research laboratories

Clinical laboratories

Water quality testing

Chemical laboratories

Food and beverage analysis

Environmental testing

Industrial quality control

BENEFITS

Accurate and reliable analytical results

Easy to operate

Fast sample analysis

Stable measurement performance

Suitable for routine laboratory use

Durable and economical laboratory instrument

Versatile Compatibility with Industry-Standard Color Discs

The Labtroniks Visual Colorimeter is engineered for flexibility, allowing seamless use with leading color standards, including Pt-Co, Hazen, APHA, Gardner, and Saybolt. Its compatibility broadens its application across various sectors, making it ideal for laboratories that need reliable color assessment that conforms to recognized protocols.

Durable Design with Chemical Resistance

Constructed from powder-coated steel and finished with anti-corrosive materials, the LT 790 stands up to harsh laboratory environments. This robust design ensures longevity and consistent performance, even when exposed to aggressive chemical substances, which is key for routine, high-throughput color testing.

Ease of Operation and Accurate Results

With its manual color matching mechanism and easy-to-replace glass sample cells, the Labtroniks Visual Colorimeter is user-friendly while maintaining high levels of accuracy. The included calibration accessories help maintain precision, giving users confidence in their daily color grading tasks.

FAQ's of Labtroniks Visual Colorimeter:

Q: How does the Labtroniks Visual Colorimeter operate for color measurement?

A: The LT 790 employs manual visual color matching using comparator discs and a high-quality optical viewing system. Users insert a sample cell and rotate the corresponding color disc to visually compare and find the closest match, allowing for rapid and precise color assessment.

Q: What color standards are compatible with this visual colorimeter?

A: This instrument supports standard color discs such as Pt-Co, Hazen, APHA, Gardner, and Saybolt, making it suitable for a broad array of industry-specific color measurement requirements.

Q: When should I calibrate the LT 790, and what accessories are provided for calibration?

A: Calibration should be performed regularly before critical analyses or after cleaning/maintenance. The LT 790 is supplied with relevant calibration accessories to ensure ongoing measurement accuracy and reliable results.

Q: Where is the Labtroniks Visual Colorimeter commonly utilized?

A: It is widely used in chemical, pharmaceutical, petroleum, and beverage industry laboratories for the visual grading and comparison of liquid samples according to various color standards.

Q: What are the benefits of using a manual visual colorimeter like the LT 790?

A: The LT 790 offers high visual accuracy, rapid sample change, robust chemical resistance, and low power consumption, making it a cost-effective and dependable solution for routine color assessments.

Q: How easy is it to change sample cells during operation?

A: The design enables straightforward replacement of glass sample cells, allowing users to quickly prepare for the next analysis and increase laboratory efficiency.
