Microprocessor Dissolution Test Apparatus (Eight Basket)

Send Inquiry

Request To Call Back

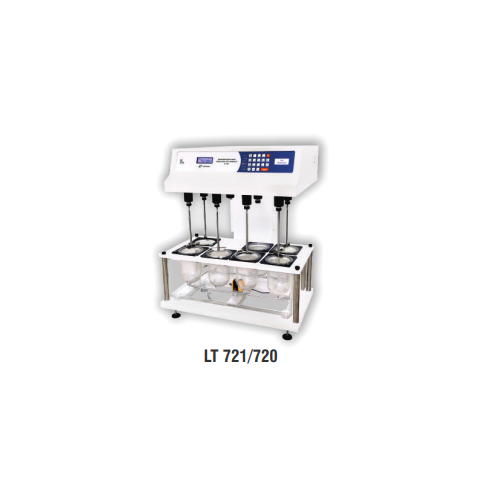

Microprocessor Dissolution Test Apparatus (Eight Basket)

Name: Microprocessor Dissolution Test Apparatus (Eight Basket)
Brand: LABCARE INSTRUMENTS & INTERNATIONAL SERVICES
Price: 240000.0 INR
Availability: InStock

Price 240000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Microprocessor Dissolution Test Apparatus (Eight Basket) Specification

Measurement Range
RPM 25 to 250 (programmable)

Capacity
Eight Basket (8 Stations)

Feature
Eight Basket, Programmable, User-Friendly Interface, Conforms to USP, IP, BP standards

Core Components
Microprocessor Controller, Dissolution Vessels, Basket Assemblies

Voltage
230V AC Single Phase

Frequency
50 Hz

Accuracy
0.1C Temperature accuracy

Power Source
230V 10% AC Mains

Temperature Range
30C to 45C adjustable

Model No
LT 721/720

Automation Grade
Semi-Automatic / Automatic

Equipment Materials
Stainless Steel (SS 316/304) and corrosion-resistant body

Type
Tablet Dissolution Testing Apparatus

Usage
Pharmaceutical tablet and capsule dissolution testing

Display Type
Microprocessor based digital LCD Display

Dimension (L*W*H)
Approx. 700 mm x 450 mm x 600 mm

Weight
Approx. 35-40 kg

Touch Keypad
Alphanumeric with feather touch keys

Bath Capacity
20 Liter

Interface
RS-232C/USB available for data communication

Run Time
Programmable up to 99 hours 59 min

Bath Type
Double Walled Water Bath with PID Control

Programmable Profile
Multi-point programmable for speed and temperature

Basket Shaft Alignment
Auto-alignment with magnetic coupling

Basket Movement
Smooth, vibration-free motor drive

Validation Port
Available for temperature validation

Alarm
Audio-visual alarm for test completion

Heater Capacity
1000 W

Dissolution Vessels
8 Glass Vessels of 1000 ml each

RPM Control
Electronic with stepper motor and digital feedback

Stirring Shaft
Stainless Steel with Teflon Bush for Low Friction

Safety Features
Over-temperature protection, Low water level cutoff

Compliance
Meets all current pharmacopoeia (USP, IP, BP) requirements

About Microprocessor Dissolution Test Apparatus (Eight Basket)

MICROPROCESSOR DISSOLUTION TEST APPARATUS EIGHT BASKET

The Microprocessor Dissolution Test Apparatus Eight Basket is a precision laboratory instrument designed for evaluating the dissolution characteristics of pharmaceutical tablets and capsules. Equipped with advanced microprocessor control and an eight basket testing system, it ensures accurate, reliable, and reproducible dissolution testing in accordance with pharmaceutical quality control and research requirements.

FEATURES

Microprocessor based control system

Eight basket dissolution testing station

Digital display for parameter monitoring

Accurate speed and temperature control

Uniform heating and circulation system

User friendly operation

High precision testing performance

Robust and corrosion resistant construction

Reliable and repeatable results

Suitable for continuous laboratory operation

APPLICATIONS

Pharmaceutical industries

Quality control laboratories

Research and development laboratories

Educational institutions

Drug formulation studies

Regulatory testing laboratories

BENEFITS

Accurate dissolution testing

Excellent reproducibility

Improved laboratory efficiency

Easy operation and maintenance

Reliable long term performance

Compliance with pharmaceutical testing requirements

Unmatched Precision and Compliance

This apparatus boasts a high-accuracy temperature control system, programmable profiles for both speed and temperature, and comprehensive safety features such as over-temperature and low water level cutoffs. Its stainless steel and corrosion-resistant construction ensure lasting performance, while auto-alignment with magnetic coupling guarantees precise basket positioning every time.

Intuitive and User-Friendly Operation

Operation is streamlined with an alphanumeric, feather touch keypad and a microprocessor-based digital LCD display that provides real-time feedback. The system supports easy validation via a dedicated port, and data transfer through RS-232C/USB interface, making documentation and analysis seamless.

Optimized for Diverse Applications

Engineered to meet the needs of distributors, exporters, manufacturers, and quality control laboratories, this eight-basket dissolution test apparatus is versatile and reliable. Its programmable run time and smooth, vibration-free basket operation make it ideal for routine QC, method development, and validation procedures in pharmaceutical testing.

FAQ's of Microprocessor Dissolution Test Apparatus (Eight Basket):

Q: How does the auto-alignment feature for basket shafts benefit the dissolution process?

A: The auto-alignment with magnetic coupling ensures each basket is perfectly positioned, reducing human error associated with manual alignment. This improves reproducibility and accuracy of dissolution results, meeting strict pharmacopoeia criteria.

Q: What safety features are built into the apparatus to protect both the user and the equipment?

A: This device includes over-temperature protection and a low water level cutoff, preventing the system from overheating or operating when water is insufficient, and safeguarding both the users and the apparatus from potential hazards.

Q: When should I use the programmable run time function, and how does it enhance my workflow?

A: The programmable run time, adjustable up to 99 hours and 59 minutes, allows you to automate test durations according to specific protocols. This feature reduces the need for constant monitoring and ensures tests are consistently performed as per validated procedures.

Q: Where can I validate the temperature of the water bath for compliance checks?

A: A dedicated validation port is provided on the apparatus, enabling direct and convenient temperature calibration to meet regulatory compliance requirements such as USP, IP, and BP protocols.

Q: What is the process for adjusting speed and temperature profiles during a dissolution test?

A: Speed and temperature can be programmed in multi-point profiles via the touch keypad. The microprocessor automatically adjusts these parameters throughout the test, ensuring precise control and strict adherence to your testing protocol.

Q: How does the apparatus facilitate data communication and documentation?

A: With built-in RS-232C and USB interfaces, test data can be exported directly from the apparatus to a computer or external system, simplifying electronic record-keeping and compliance with laboratory information management practices.
